Diesel Injector Troubleshooting: Wiring Harness Failures and Rebuild Kits

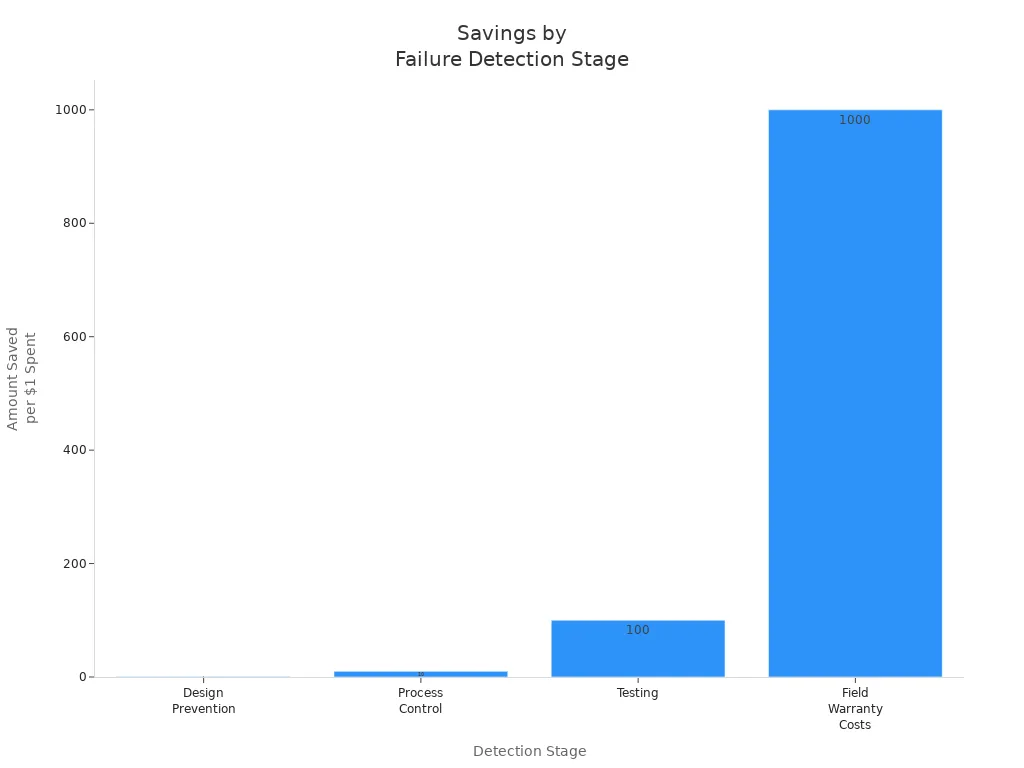

Wiring harness failures disrupt diesel injector performance by causing erratic fuel delivery, misfires, and reduced engine performance. Diesel injector troubleshooting requires early detection to prevent costly repairs and maintain reliability. Timely repair with diesel injector repair kits restores performance and ensures quality operation. Many engineers recommend monitoring wear indicators and servicing diesel fuel-system components on schedule to avoid failure.

• Early intervention before mechanical failure occurs
• Maintaining lubrication quality
• Controlling contamination

The right diesel injector repair kit improves performance and reduces downtime. Choosing quality parts from Megawatts Parts supports global diesel repair needs.

Diesel Injector Troubleshooting: Key Symptoms

Engine Misfire and Rough Idle

Engine misfires and rough idle are among the earliest signs of a failing injector or wiring harness problems. Diesel injector troubleshooting often begins when operators notice random engine misfires, especially during acceleration or under load. These misfires can cause engine hesitation, inconsistent air-fuel ratios, and a noticeable drop in engine performance. Technicians frequently report that diesel engines with harness faults exhibit hesitation and unpredictable misfires, making smooth operation impossible. Early repair of injector wiring or connectors can restore performance and prevent further damage.

Tip: If you experience engine hesitation or rough idle, inspect the injector harness for cracked insulation or loose connections before replacing injectors.

Power Loss and Poor Fuel Economy

Power loss and poor fuel economy are common symptoms of diesel injector problems. To understand exactly how these components directly impact your operating costs and how to optimize them, we highly recommend reading our comprehensive guide on maximizing fuel efficiency and taking a deep dive into fuel injectors. When the wiring harness develops faults, the engine may struggle to deliver consistent power. This leads to increased fuel consumption and reduced performance. Diesel injector troubleshooting for these issues involves several steps:

• Retrieve diagnostic trouble codes using a scan tool to identify injector circuit faults.
• Inspect the harness for visible damage, corrosion, or burn marks.
• Check connectors for discoloration or loose contacts.
• Use a multimeter to test continuity and voltage across the harness.

Prompt repair of harness faults can restore engine performance and reduce operating costs.

Warning Lights and Error Codes

Modern diesel engines use advanced diagnostics to alert operators to injector circuit problems. Common warning lights include the check engine light, which often signals injector circuit open, low voltage, or high resistance. The following table lists typical injector circuit error codes:

When these codes appear, immediate repair of the injector harness or connectors is essential to maintain engine performance.

Hard Starting or No Start

Hard starting or no start conditions in diesel engines can result from several issues, including weak glow plugs, low battery, or contaminated fuel. However, corroded connections and cracked wiring in the injector harness are frequent causes. Diesel injector troubleshooting should always include inspection of the harness when facing starting problems. Repairing damaged wiring or connectors often resolves these issues and restores reliable engine operation.

Note: Addressing wiring harness faults early prevents costly repairs and ensures optimal diesel engine performance. Always consider harness inspection as part of your troubleshooting routine for any signs of a failing injector.

Wiring Harness Failure Causes

Heat and Vibration

Heat and vibration are leading contributors to diesel fuel injector wiring harness failure. High temperatures from turbochargers and exhaust systems can degrade the insulation on the injector wiring harness. Over time, this exposure causes the harness to become brittle and prone to cracking. Vibration from the engine, especially in high-performance diesel applications, accelerates wear and tear. Older vehicles often show signs of age-related harness deterioration due to repeated heat cycles. These conditions increase the risk of injector wiring issues, resulting in erratic diesel engine performance and the need for frequent repair.

• Heat exposure damages wiring insulation.
• Vibration leads to harness wear and potential failure.
• Age and repeated heat cycles make wires brittle.

Corrosion and Moisture

Corrosion and moisture present significant risks to the diesel injector wiring harness. Water intrusion into the fuel system can corrode precision injector components, which are typically made from hardened steel. This corrosion appears as surface pitting and rust, compromising the tight tolerances required for proper injector operation. Moisture also fosters microbial growth at the water-fuel interface, producing acidic byproducts and sludge that further damage the injector and harness. Upgrading your filtration system is the best defense against these elements. If you are unsure which model fits your needs, our comparison of the FS1280 vs FS1040 can help you determine which Fleetguard fuel water separator best protects your injectors from moisture damage.These conditions often lead to injector wiring harness failure, resulting in hard starting, misfires, and costly repairs.

Tip: Regular inspection and sealing of connectors help prevent moisture-related damage to the fuel injector wiring harness.

Brittle Wires and Connector Issues

Brittle wires and faulty connectors are common sources of diesel injector wiring harness failure. When the electrical signals from the engine control unit to the injectors are disrupted by damaged wiring or worn connectors, the engine may experience random misfires, hesitation during acceleration, and hard starting. Inconsistent air-fuel ratios and check engine codes related to injector circuits often indicate underlying harness problems. According to manufacturer reports, common causes include broken wiring harnesses from poor assembly, harness wear due to interference, damaged assembly plugs, and poor contact in plug assemblies.

Prompt repair of the injector wiring harness and connectors restores diesel engine reliability and prevents further injector wiring issues.

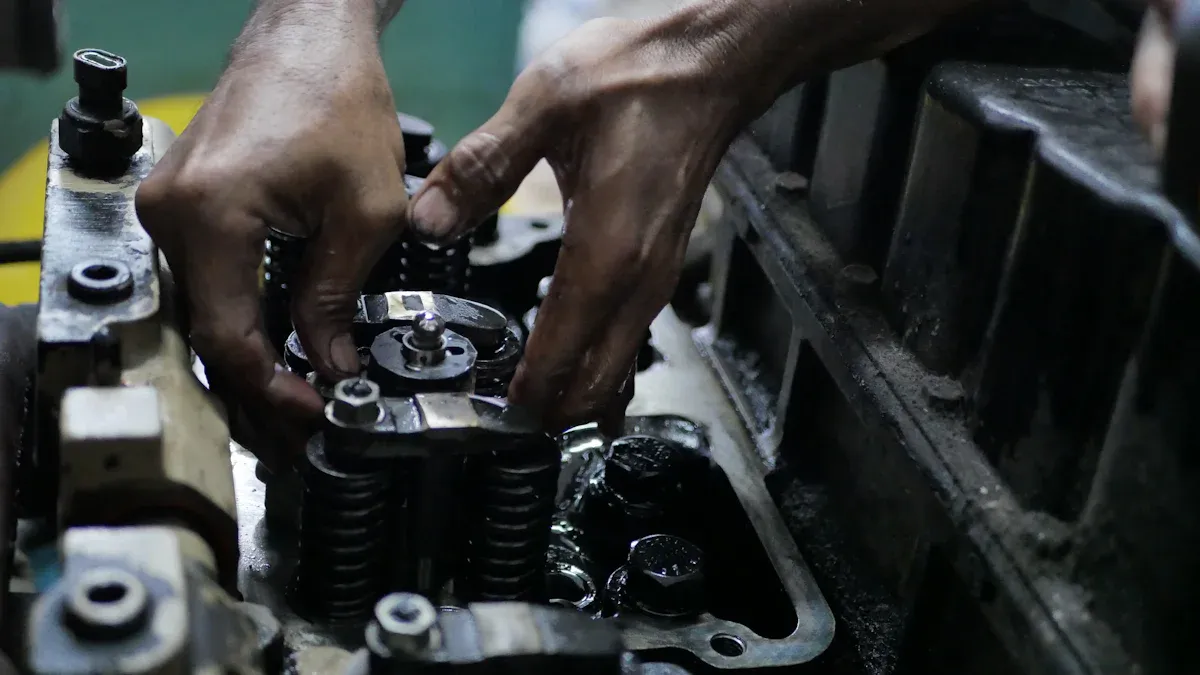

Diagnosing Wiring Harness Problems

Visual Inspection Steps

Effective diesel injector troubleshooting begins with a thorough visual inspection of the fuel injector wiring harness. Technicians often use inspection mirrors to examine tight spaces behind engine components. Manipulating the harness can reveal cracks or breaks that only appear when the wire flexes. Running the engine during inspection helps identify vibration damage and contact points that remain hidden when the engine is off. Discolored insulation signals prolonged heat exposure, while white corrosion powder at connector interfaces indicates moisture intrusion. Brittle wire covering that cracks upon bending points to thermal degradation. Green copper oxidation confirms conductor exposure, and oil-soaked sections highlight deteriorated protective sleeving.

Using Diagnostic Tools

Advanced diagnostic tools play a critical role in identifying diesel injector wiring harness problems. A scan tool retrieves diagnostic trouble codes that point to specific injector circuit faults. Technicians use a digital volt-ohmmeter (DVOM) to measure resistance and voltage at each injector. This process helps pinpoint wiring issues that cause engine hesitation, misfires, or poor performance. Consistent use of these tools ensures accurate repair and reduces the risk of recurring problems in the diesel engine.

Tip: Always document error codes and test results to track recurring injector wiring harness issues and streamline future repair.

Checking Continuity and Voltage

Checking continuity and voltage in the injector wiring harness follows a systematic approach:

• Turn off the engine and remove any shields to access the injectors.
• Disconnect the fuel injector wiring harness, ensuring all slide locks are disengaged.
• Set the DVOM to measure ohms and check the resistance of each diesel injector.
•
• For high impedance injectors, expect 12 to 17 ohms; for low impedance, 2 to 5 ohms.
• If any injector shows a significant resistance difference, further inspection is required.
• Switch the DVOM to DC voltage and turn the key to the ON position without starting the engine.
• Ground the negative lead and connect the positive lead to the harness terminal.
• Each injector should read around 12 volts. Low readings indicate a wiring problem that requires immediate repair.

Accurate diagnosis of the injector wiring harness ensures reliable diesel engine operation and prevents costly repair from unresolved problems.

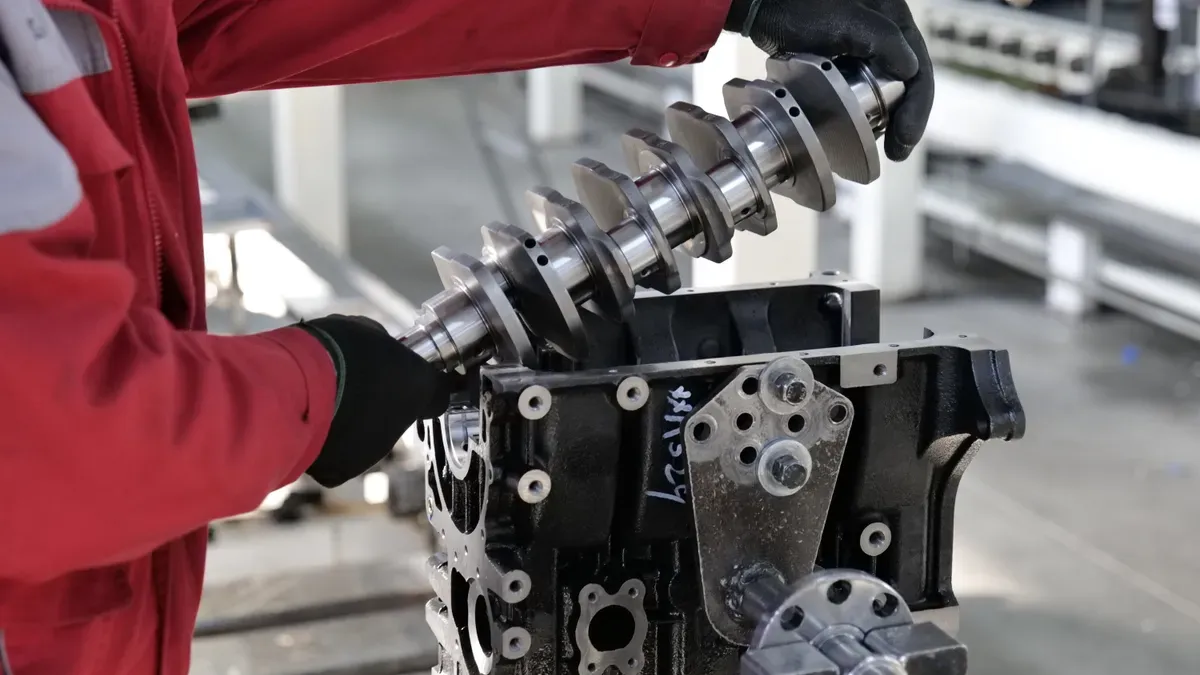

Repair and Rebuild Solutions

Injector Rebuild Kits Overview

Diesel injector repair kits play a crucial role in restoring engine performance and preventing recurring failures. These kits address common failure points in diesel injectors, providing all necessary parts for a successful repair. Technicians and fleet managers rely on diesel injector repair kits to extend the service life of injectors and maintain optimal fuel delivery. The typical components included in a diesel injector repair kit are:

• O-rings and copper washers: These parts prevent fuel leaks and contain combustion gases, ensuring proper sealing.
• Using premium seals, gaskets, and O-rings is critical here, as substandard materials will quickly degrade under the intense heat and pressure of a diesel engine.
• Nozzles: Nozzles atomize diesel fuel into a fine mist, promoting efficient combustion and reducing emissions.
• Internal valves: Valves regulate the timing and amount of fuel injected, supporting precise engine operation.
• Seals and gaskets: Seals and gaskets restore sealing integrity, preventing contamination and maintaining pressure.
• Filters: Filters ensure clean fuel delivery, protecting the injector from debris and wear.
• Specialized tools: Tools included in the kit aid in proper rebuild and prevent damage during disassembly.

We strongly recommend installing brand new fuel filters during any injector rebuild to prevent existing system debris from instantly contaminating your newly installed parts.Industry standards and certifications guarantee the reliability of diesel injector repair kits. The following table highlights key certifications:

Megawatts Parts offers a wide selection of diesel injector repair kits, including oem-quality replacement parts and aftermarket options. Customers benefit from fast shipping, live support, and global service through branches in China, Saudi Arabia, Colombia, and Nigeria. Choosing a diesel injector repair kit from Megawatts Parts ensures restored engine performance and long-term reliability.

Tip: Always verify that your diesel injector repair kit meets industry standards and includes all necessary components for a successful repair.

Harness Repair Kits and Updated Connectors

Harness repair kits provide an efficient solution for addressing injector wiring harness failures. Using these kits can save between $500 and $1,000 by avoiding unnecessary injector replacements. Harness repair kits restore full engine performance immediately, eliminating issues such as rough idle and misfires. Updated connectors in these kits enhance durability and prevent recurring failures every 50,000 to 80,000 miles.

The following table summarizes the advantages of updated connectors in harness repair kits:

Megawatts Parts supplies harness repair kits and updated connectors for a wide range of diesel engines. Customers can choose from genuine parts for compatibility and reliability or aftermarket parts for affordability. Remanufactured parts offer a sustainable option, reducing energy use and carbon emissions by utilizing existing components.

Note: Proper installation of your diesel injector repair kit and harness repair kit is essential for a successful repair and long-term reliability.

When to Repair or Replace

Deciding between repair and replacement depends on several factors, including cost, reliability, and ease of installation. Diesel injector repair kits are ideal when the injector shows signs of wear but remains structurally sound. Repair is recommended for minor leaks, degraded seals, or clogged nozzles. Harness repair kits are suitable when the injector wiring harness exhibits corrosion, brittle wires, or connector issues but the overall harness remains intact.

Consider the following practical advice:

• Assess the extent of damage. If the injector or harness has severe physical damage or repeated failures, replacement may be necessary.
• Evaluate cost-effectiveness. Repair with diesel injector repair kits and harness repair kits often costs less than full replacement and restores performance quickly.
• Check compatibility. Genuine parts ensure reliability and compatibility, while aftermarket parts offer affordable alternatives.
• Review installation complexity. Some repairs require specialized tools and technical expertise. Choose kits that include clear instructions and necessary tools.
• Factor in sustainability. Remanufactured parts reduce environmental impact and support responsible maintenance practices.
• In cases where the internal components are beyond repair or heavily scored, upgrading to a complete, high-quality fuel injector assembly is the most reliable choice to restore your diesel engine to factory performance.

Megawatts Parts provides both genuine and aftermarket diesel injector repair kits, harness repair kits, and OEM-quality replacement parts. Customers receive expert support and global service, ensuring access to quality parts for every diesel engine application.

Callout: Consult experienced engineers or Megawatts Parts support for guidance on selecting the right repair solution. Early intervention prevents costly downtime and ensures reliable diesel engine operation.

Prompt diesel injector troubleshooting and repair are essential for maintaining engine performance and reliability. Early identification of wiring harness issues through systematic inspection prevents major diesel failures and costly breakdowns. Quality diesel injector repair kits, rigorously tested to meet OEM standards, deliver restored engine performance and long-term reliability. Engines rebuilt with quality parts can achieve extended service life and improved performance. Successful repair depends on using the right diesel injector repair kit and harness repair kit. Explore Megawatts Parts for expert support and access to quality parts that restore engine performance and ensure successful repair.
