How to Change a Generator Air Filter at Home (Beginner-Friendly Guide)

Your generator is the heart of your power backup system. But just like humans need clean air to breathe, your diesel engine needs clean air to run efficiently. A clogged air filter can "choke" your generator, leading to black smoke, power loss, and significantly higher fuel consumption.

If the thought of DIY maintenance makes you nervous, fear not! Replacing an air filter is one of the easiest DIY maintenance tasks you can perform. You don't need to be a certified mechanic to do it. This step-by-step, beginner-friendly guide will walk you through how to safely change your generator's air filter at home. With just a few basic tools and 15 minutes of your time, you can significantly extend the life of your generator.

Why Is a Clean Air Filter Critical?

Think of the air filter as your generator's lung. It prevents dirt, dust, pollen, and other debris from being sucked into the engine's combustion chamber. A diesel engine consumes thousands of gallons of air for every gallon of fuel it burns. Over time, the filter becomes clogged. A dirty air filter can lead to:

• Reduced Performance: The engine struggles to "breathe," leading to a rich air-fuel mixture, power loss, and rough idling.
• Increased Fuel Consumption: A choked engine works harder and burns more fuel.
• Engine Damage: Abrasive particles can bypass a clogged filter, causing premature wear to pistons, rings, and cylinders.
• Hard Starting: The generator may be difficult to start when you need it urgently.

Understanding why a clean air filter is critical is only the first step. To truly protect your generator’s performance and extend its service life, regular replacement is essential. Fortunately, changing a generator air filter is a straightforward maintenance task that can be done quickly with the right approach. Below is a step-by-step guide to help you replace your generator air filter safely and efficiently.

Before You Begin: Safety First & What You'll Need

Safety Warning:

Always prioritize safety. Ensure the generator is completely cool​ before starting. Work in a well-ventilated area and disconnect the spark plug wire to prevent any accidental startup.

Tools and Materials Needed:

• New Air Filter: This is the most important part! Ensure you have the correct replacement. You can find the exact OEM part number in your generator's owner's manual or on the old filter itself.
• Pro Tip: Use our Air Filters category to easily search by your generator's brand (e.g., Cummins, Perkins, orKubota) or model number to find the perfect fit.
• Screwdriver (Flat-head or Phillips): Most commonly needed to remove the air filter cover. (Depends on your housing clamps).
• Clean Cloth: For wiping away any dust or debris from the air filter housing.
• Flashlight (optional): To inspect the housing for cracks.

Step-by-Step Guide to Changing Your Generator Air Filter

Follow these 8 steps to safely replace your filter in under 30 minutes.

Step 1: Safety First

Always ensure the generator is completely shut down. If you have an automatic transfer switch (ATS), switch the generator to "OFF" mode to prevent it from auto-starting while your hands are inside. Let the engine cool down if it has been running.

Step 2: Locate the Air Filter Housing

Consult your owner's manual to find the air filter. It's typically a black plastic box on the side of the engine, secured with screws or a quick-release clip.

Step 3: Remove the Cover

Using the appropriate screwdriver, carefully loosen and remove the screws holding the cover in place. Set the screws aside in a safe spot. If it uses a clip, gently unclip it.

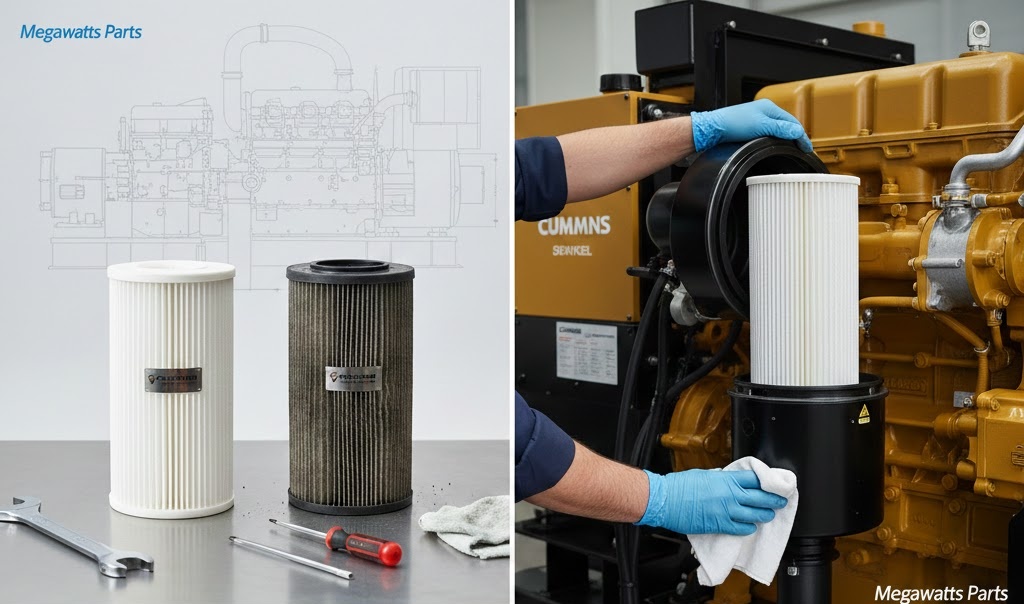

Step 4: Remove the Old Air Filter

Lift the cover off, and you will see the old air filter. Carefully pull it straight out. Take a moment to inspect it. Hold it up to a light source; if you can't see light passing through the filter media, it's definitely time for a replacement.

Step 5: Clean the Housing(Critical Step!)

This is where amateurs make mistakes. Before installing the new filter, use your clean cloth to wipe out any dust, leaves, or debris that has accumulated inside the air filter housing. Clean housing ensures no dirt falls into the engine when the new filter is installed.

Pro Tip: Selecting a High-Performance Replacement

Before you slide in the new filter, ensure you are using a component that matches your engine's specific airflow requirements. For operators using heavy-duty machinery or generator sets with 4B39, 6B59, 6C83, or 6L89 engines, the K28900 Cummins Air Filter is a top-tier choice. Designed to withstand high-vibration environments, the K28900 provides the precise filtration density needed to protect your engine's combustion chamber from even the finest dust particles. Using a verified replacement like the K28900 ensures that your DIY maintenance translates into long-term engine reliability.

K28900 Cummins Air Filters for Machinery Engine 4B3.9 6B5.9 6C8.3 6L8.9

$28.91

Learn More Add To Cart

Step 6: Install the New Air Filter

Take your new, genuine Megawatt air filter​ out of its packaging. Carefully place it into the housing, ensuring it sits evenly and snugly in the same position as the old one. Do not force it.

Step 7: Reattach the Cover

Place the cover back on the housing and securely fasten it with the screws or clip. A bad seal lets dust bypass the filter. Double-check that it is sealed properly to prevent unfiltered air from entering the engine.

Step 8: Reconnect the Spark Plug

Reconnect the spark plug wire you disconnected for safety.

Congratulations! You've successfully changed your generator's air filter. This simple act of maintenance is a key part of ensuring your generator is ready for any power outage.

Troubleshooting and Pro Tips

What if my generator model is different?

The basic process is universal. Always refer to your specific owner's manual​ for the most accurate instructions and diagrams.We can guide you on how to choose the right filter for your generator.

How often should I change it?

A general rule is every 100-150 hours of operation or at least once per season. If you operate in extremely dusty conditions, check and change it more frequently.

Can I just clean the old filter?​

While some filters are marketed as "cleanable," most paper-based filters are used in generators.
