In-Frame vs. Out-of-Frame Engine Overhaul: Cost Analysis and Part Replacement Strategy for Fleet Managers

Evaluating an in-frame vs out-of-frame overhaul requires fleet managers to prioritize long-term asset ownership and labor efficiency over simple upfront repair bill comparisons. Executing a standard in-frame overhaul usually offers direct pricing around $25,000. Conversely, a comprehensive shop rebuild involving a complete engine remanufacture project often exceeds $40,000. Deciding to remanufacture a worn iron block resets asset service life, much like purchasing a complete remanufactured engine for critical fleet operations. However, neglecting minor wear components during an overhaul leads to redundant labor cost from repeated teardowns. Megawatts Parts supplies high quality OEM-spec replacement kits, protecting your overall return on investment across demanding commercial fleet applications.

Understanding In-Frame vs Out-of-Frame Overhaul Scope

Scope and Part Replacement for In-Frame Overhaul

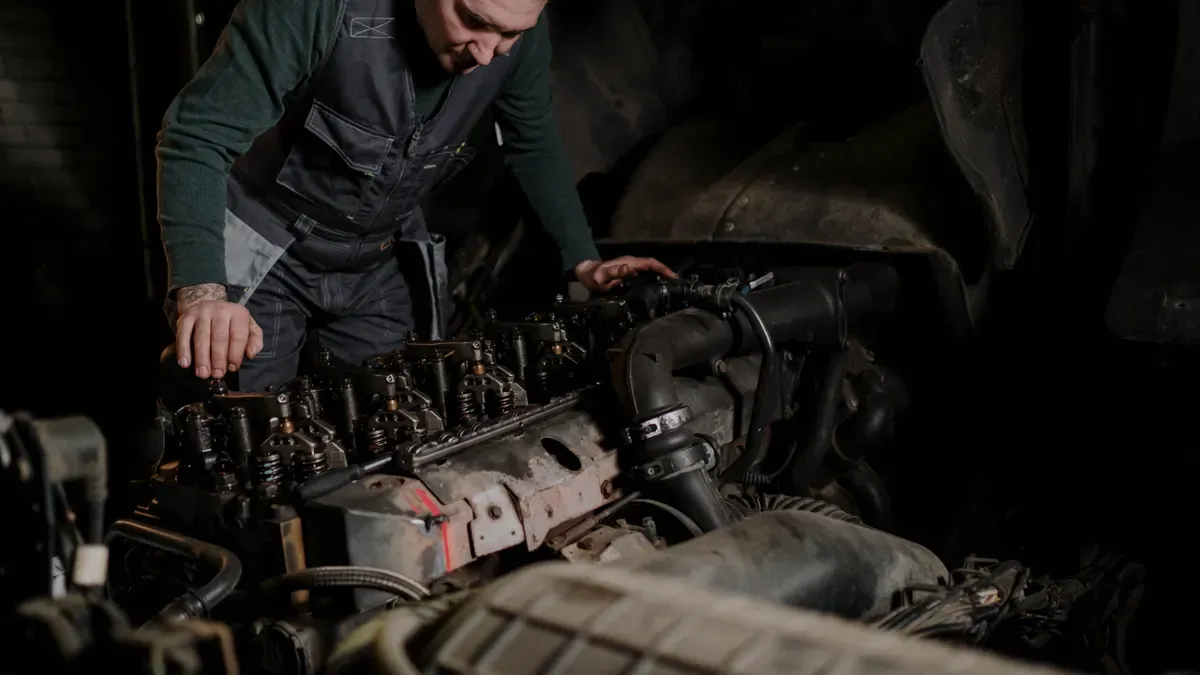

Selecting between an in-frame vs out-of-frame overhaul depends heavily on engine block integrity and operational downtime goals. Technicians complete an in-frame overhaul while the engine block remains safely mounted inside the heavy diesel truck chassis. Fleet managers choose an in-frame overhaul when lower internal structures pass inspection. Maintenance technicians begin by pulling upper assemblies to inspect block deck straightness, check lower counterbores for cavitation erosion, and measure liner projection across every cylinder precisely using specialized dial indicator tools.

During an in frame job, mechanics systematically replace essential upper friction components to renew overall performance. To restore full compression and power, standard replacement packages always include complete cylinder liner and piston kits, alongside rod bearings, main bearings, and upper seals. Keeping the engine block in place minimizes total shop idle time for commercial diesel engines. Fleet managers use this targeted approach for an in frame rebuild strategy to maintain reliable operational standards while keeping initial maintenance expenses strictly under control.

Complete Mechanical Reset of Out-of-Frame Service

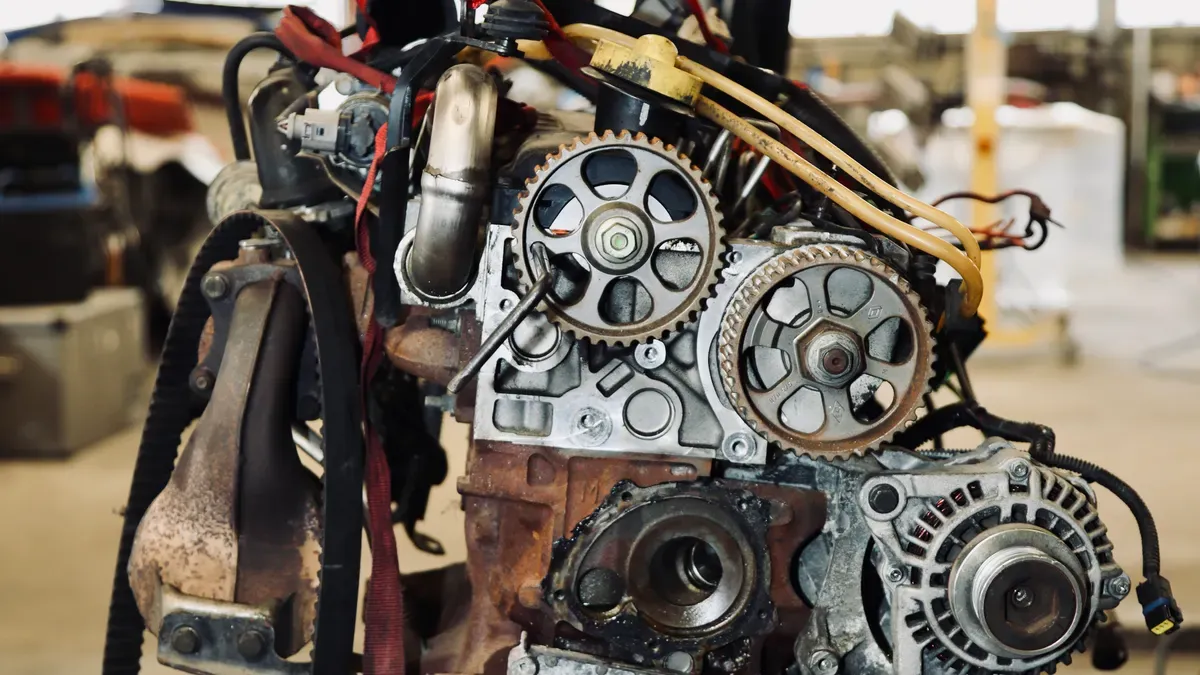

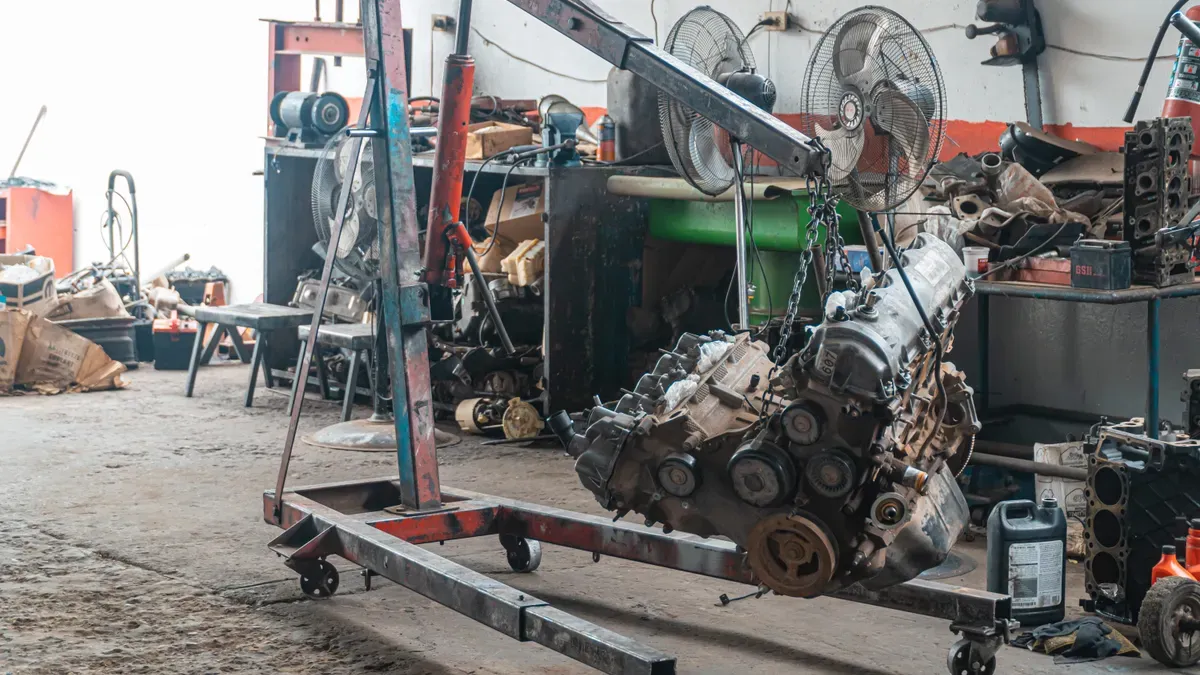

An out of frame service requires removing the power plant completely from the truck chassis. Maintenance mechanics perform a complete mechanical teardown to execute deep industrial cleaning operations across every internal casting. Workshop technicians utilize chemical cleaning tanks, media sandblasting, and ultrasonic cleaning baths to clear clogged internal oil passages. This thorough reset resolves severe lower-end wear in high-mileage diesel machinery before major structural component failure occurs.

This comprehensive out of frame engine rebuild involves extensive precision shop machining. Skilled machinists perform block line-boring, deck resurfacing, magnetic crack testing, and crankshaft grinding to restore original factory tolerances. Unlike minor repairs, a complete engine rebuild fundamentally restores critical lubrication by installing a brand new oil pump, while also replacing the water pump, camshaft, front cover, and rear main seals. Choosing a complete engine rebuild establishes true zero-hour structural reliability across demanding haul routes. Fleet owners execute this complete overhaul to extend overall asset service life effectively during any heavy rebuild project.

Cost Analysis and Downtime Comparison

Direct Financial Costs and Labor Breakdown

Fleet managers evaluate financial metrics carefully before selecting an engine rebuild project for their trucks. Conducting a thorough cost analysis allows maintenance teams to balance immediate shop expenses against expected vehicle operational life. Initial parts pricing and labor rates strongly influence this major decision across commercial transport operations.

💡 Strategic Resource: Unsure how to balance your parts budget? Read our financial breakdown on Budget-Friendly Overhaul: Choosing Between Individual Engine Parts and Complete Gasket & Seal Kits to maximize your repair ROI.

Mechanics execute an in-frame overhaul efficiently because the block remains mounted safely inside the chassis. Service documentation from Skyliner Repair Center provides a labor hour estimate of 40-60 hours for an in-frame overhaul. Pulling heavy diesel components out of frame adds extensive shop labor overhead. Avoiding complete engine removal yields valuable labor savings on overall repair invoices for the company.

Fleet Downtime Impact and Revenue Losses

Unplanned vehicle idle time creates immediate revenue losses for commercial transport companies. Selecting an in-frame vs out-of-frame overhaul dictates total garage downtime and driver assignment schedules. According to 'A Fleet Manager’s Truck Engine Rebuild Guide', typical downtime for an in frame project spans 7 to 14 days. Fleet managers maintain maximum operational efficiency by scheduling planned service around this predictable timeframe.

A comprehensive engine rebuild requires multi-week shop schedules to complete detailed mechanical cleaning and machining. Technicians may remanufacture severely worn block surfaces or install a full remanufactured engine to restore baseline performance standards. Every extensive engine rebuild increases operational downtime delays for commercial diesel equipment. Fleet directors evaluate each engine rebuild carefully to preserve active delivery schedules. Executing a planned rebuild protects total asset cost while keeping fleet vehicles fully operational.

Engine Part Replacement Strategy for Maximum ROI

Preventing Secondary Labor Costs with Full Kits

Fleet managers avoid major secondary repair expenses by replacing all friction components during a planned engine overhaul. Skimping on minor internal parts during a rebuild leads to early mechanical failures and repeated shop teardowns. Outdated connecting rods cause severe rod bearing failures. Doing the bare minimum upfront means paying for the exact same repair twice while suffering extra vehicle downtime.

Catastrophic failures can send metal debris throughout the lubrication system, damaging multiple internal components. In such situations, replacing the entire engine often provides greater reliability and lower long-term risk than a partial overhaul.

Installing complete rebuild kits from Megawatts Parts gives fleet operators a cost-effective solution that protects operational budgets. Megawatts Parts supplies OEM-quality components for Caterpillar, Cummins, Detroit Diesel, Volvo, Perkins, Deutz, and Komatsu machinery. Using full kits delivers the true benefits of rebuilding by unlocking substantial long-term labor savings.

Wear Components Bearings Rods and Gasket Protocols

Mechanics must replace all core wear components during every diesel engine rebuild to maximize asset productivity. Complete rebuild kits supply new piston rings, main bearings, rod bearings, valve springs, and water pumps. :

• Head gasket and upper seal set
• Cylinder liner kits and piston assemblies
• Main bearings and connecting rod bearings
• Crankshaft oil seals and injector seals

Utilizing precise components preserves original factory performance across demanding haul routes. Swapping out worn components during a single service event eliminates redundant labor hours for commercial diesel engines. Fleet managers ensure dependable power delivery while keeping operational cost totals strictly under control. Executing a complete engine rebuild restores baseline efficiency across high-mileage commercial diesel machinery.

Strategic Engine Overhaul Decision Matrix

Block Integrity and Engine Wear Evaluation

Fleet managers evaluate repair choices based on vehicle mileage and block structural integrity. A standard in-frame overhaul suits heavy vehicles accumulating 500,000–750,000 miles when physical castings remain undamaged. Technicians replace internal wear components directly without removing the block from the chassis. Physical block damage requires an out of frame rebuild project to remanufacture structural surfaces properly.

Technicians inspect internal structural surfaces thoroughly during early mechanical teardowns. Deep counterbore erosion or severe crankshaft scoring renders an in frame fix ineffective. Choosing a full engine rebuild restores worn structural components to original factory tolerances.

Vehicle Lifecycle Horizon and TCO Optimization

Evaluating an in-frame vs out-of-frame overhaul requires evaluating total operational asset expenses. Fleet managers calculate overall expenditure using a standard industry baseline formula:

TCO = Purchase Price + Installation + Fuel + Maintenance + Repairs + Downtime − Resale Value

Installation labor ranging from $100–$175/hr across 20–40 hours adds $2,000–$7,000 to shop invoices. Unexpected failure causes downtime costs of $448–$760 per truck per day. A 10-day outage can cost up to $7,600 in total lost revenue. Major unexpected repairs cost $2,000–$12,000 per incident. A strategic engine overhaul controls these expenses while raising fleet output.

Restoring engine performance preserves overall fleet revenue across demanding routes. A 0.5 mpg deficit on 100k miles/year burns thousands extra annually in diesel fuel. Choosing a targeted rebuild serves as a long-term investment to extend the life of the truck. Fleet operators maximize reliability while optimizing overall operation cost across commercial diesel engines.

Choosing between an in-frame vs out-of-frame overhaul depends on block structural health. Fleet managers select an in-frame overhaul for routine wear when the iron block remains intact. Structural failure demands a complete engine rebuild instead.

Proactive fleets maximize overall asset value by pairing their hardware upgrades with a premium gasket seal kit from Megawatts Parts to lock in engine compression, prevent catastrophic fluid leaks, and protect their long-term investment.

Completing a full component replacement during one rebuild prevents duplicated teardown labor expenses. This disciplined strategy lowers overall fleet cost and stabilizes vehicle productivity across long operational haul routes. Maintenance directors should present these practical ROI projections directly to executive leadership to approve planned engine overhaul budgets.

FAQ

What is the main difference between an in-frame and out-of-frame overhaul?

An in-frame overhaul keeps the engine block inside the chassis during service. Technicians save labor time. Conversely, an out-of-frame rebuild requires complete removal of the block from the truck. Mechanics perform deep cleaning and precision machining on the isolated block.

How long does a standard in-frame engine overhaul take?

Planned in-frame projects typically require 40 to 60 labor hours. Garage downtime ranges from 7 to 14 days. This quick turnaround helps fleet managers maintain active transport schedules and avoid major operational revenue losses.

Why should mechanics replace all internal wear components during a repair?

Reusing old components—like an aging water pump or worn bearings—inevitably causes extreme thermal damage and early secondary mechanical failures. Unplanned breakdowns force fleet operators to pay duplicated teardown labor expenses. Installing complete replacement kits from Megawatts Parts protects overall capital investment and restores peak diesel equipment performance.

When should fleet managers choose an out-of-frame service?

Fleet directors select out-of-frame service when physical block integrity suffers severe damage. Deep deck counterbore erosion or broken crankshafts require full block removal. This comprehensive process restores structural tolerances when standard in-frame repairs cannot fix lower-end issues.
